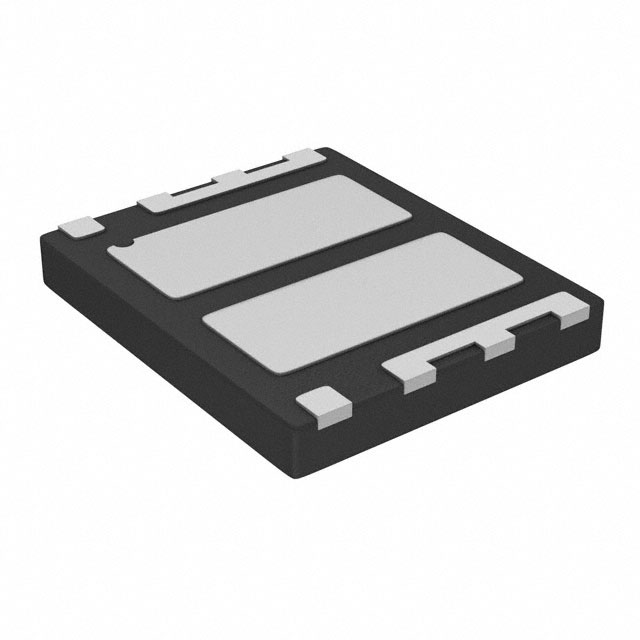

FDMS8095AC
MOSFET N/P-CH 150V 6.2A 8MLPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 150V 6.2A, 1A 2.3W Surface Mount 8-MLP (5x6), Power56
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.3W |
| Drain to Source Voltage (Vdss) | 150V |
| Current - Continuous Drain (Id) @ 25°C | 6.2A, 1A |
| Input Capacitance (Ciss) (Max) @ Vds | 2020pF @ 75V, 230pF @ 75V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6.2A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-MLP (5x6), Power56 |
