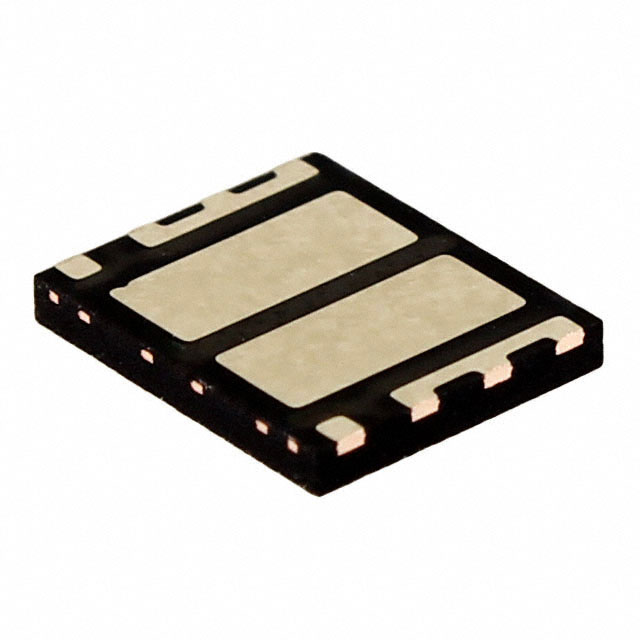

FDMS8090
MOSFET 2N-CH 100V 10A 8MLP PWR56Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 10A 2.2W Surface Mount 8-MLP (5x6), Power56
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.2W |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Input Capacitance (Ciss) (Max) @ Vds | 1800pF @ 50V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-MLP (5x6), Power56 |
