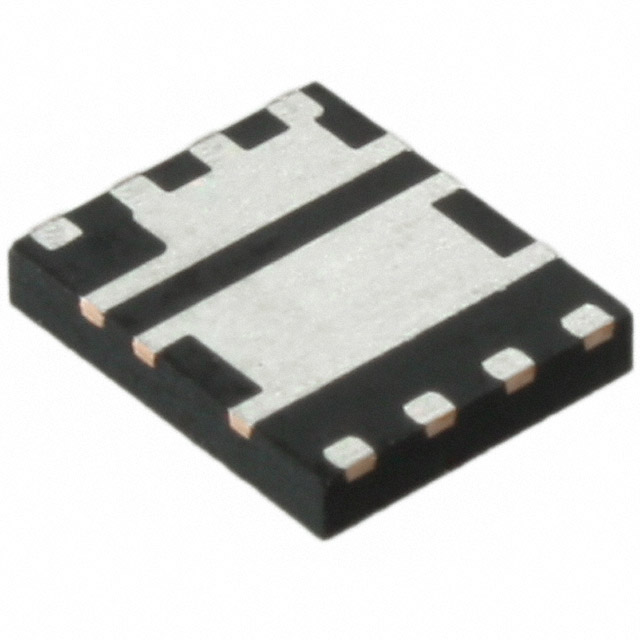

FDMS3686S
MOSFET 2N-CH 30V 13A/23A POWER56Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
The onsemi FDMS3686S is a PowerTrench® series MOSFET array featuring two N-channel, asymmetrical devices in a Power56 package. This component offers a drain-source voltage (Vdss) of 30V and continuous drain currents of 13A and 23A at 25°C. Key characteristics include a low on-resistance (Rds On) of 8mOhm at 13A and 10V, and a gate charge (Qg) of 29nC at 10V. With a maximum power dissipation of 1W and operating temperature range of -55°C to 150°C, this device is suitable for applications in power management and power conversion. The logic-level gate feature simplifies drive requirements. This component is supplied in Tape & Reel packaging.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 13A, 23A |
| Input Capacitance (Ciss) (Max) @ Vds | 1785pF @ 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 13A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Supplier Device Package | Power56 |
