FDMQ8203
MOSFET 2N/2P-CH 100V/80V 12-MLPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V, 80V 3.4A, 2.6A 2.5W Surface Mount 12-MLP (5x4.5)
Additional Information
Series: GreenBridge™ PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N and 2 P-Channel (Full Bridge) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W |
| Drain to Source Voltage (Vdss) | 100V, 80V |
| Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.6A |
| Input Capacitance (Ciss) (Max) @ Vds | 210pF @ 50V, 850pF @ 40V |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 3A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 5nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 12-MLP (5x4.5) |
Request a Quote
Clients Also Buy

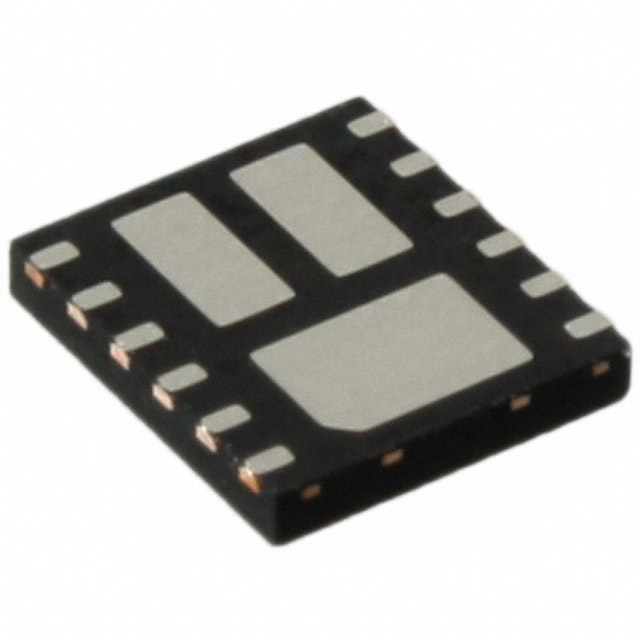

FDMQ86530L
