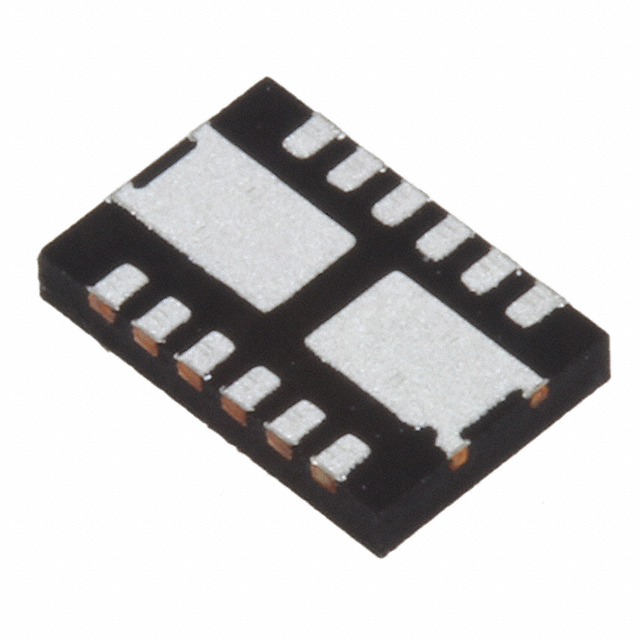

FDMD82100
MOSFET 2N-CH 100V 7A 12POWERManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 7A 1W Surface Mount 12-Power3.3x5
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1W |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Input Capacitance (Ciss) (Max) @ Vds | 1070pF @ 50V |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 7A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 12-Power3.3x5 |
