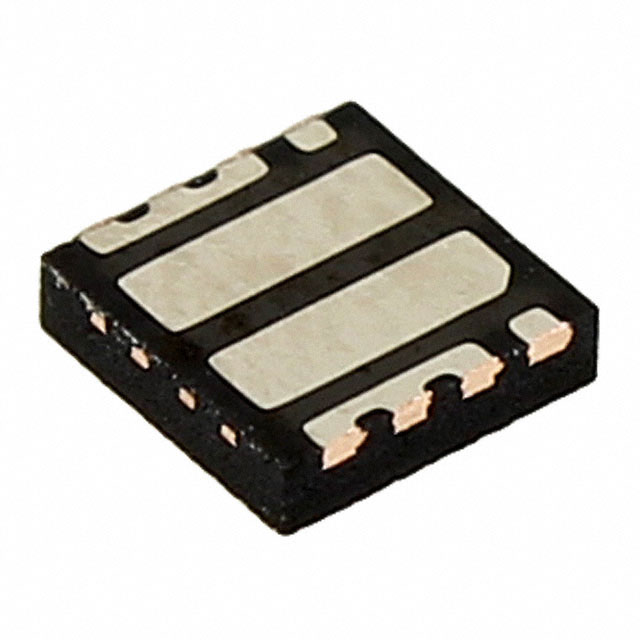

FDMC8097AC
MOSFET N/P-CH 150V 2.4A 8PWR33Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 150V 2.4A (Ta), 900mA (Tc) 1.9W Surface Mount 8-Power33 (3x3)
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.9W |
| Drain to Source Voltage (Vdss) | 150V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta), 900mA (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 395pF @ 75V, 230pF @ 75V |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 2.4A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6.2nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-Power33 (3x3) |
