FDMC8032L
MOSFET 2N-CH 40V 7A 8PWR33Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

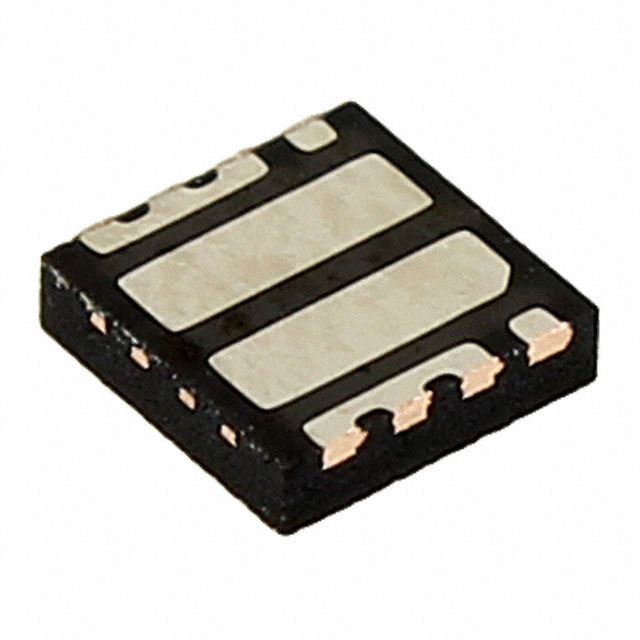

onsemi's FDMC8032L, a PowerTrench® series MOSFET array, features two N-channel 40V, 7A devices in a compact 8-Power33 (3x3) surface mount package. This dual MOSFET configuration offers a low Rds(on) of 20mOhm at 7A and 10V, with a maximum continuous drain current of 7A per channel. The logic level gate enhancement facilitates efficient switching with a Vgs(th) of 3V at 250µA. Key parameters include a maximum power dissipation of 1.9W and a gate charge of 11nC at 10V. Typical applications span industrial power management, battery charging, and consumer electronics, where space and efficiency are critical. The component is supplied in Tape & Reel (TR) packaging and operates within a temperature range of -55°C to 150°C.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.9W |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Input Capacitance (Ciss) (Max) @ Vds | 720pF @ 20V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 7A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-Power33 (3x3) |
