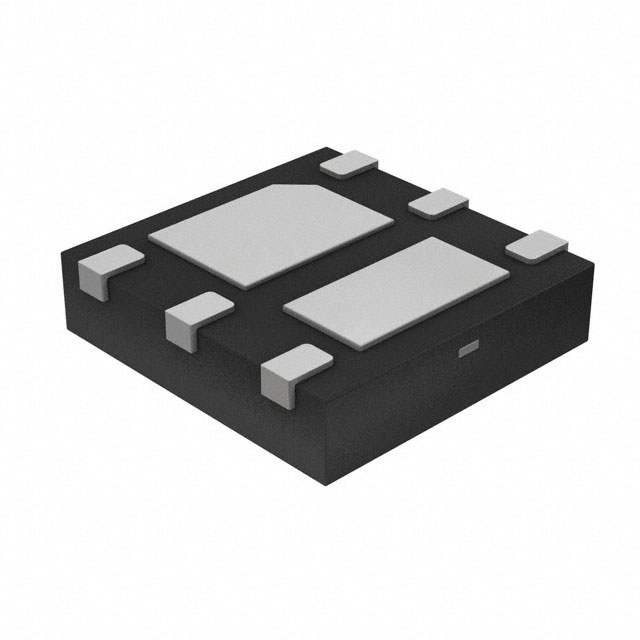

FDMC6890NZ
MOSFET 2N-CH 20V 4A MICROFET 3X3Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 4A 1.92W, 1.78W Surface Mount MicroFET 3x3mm
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.92W, 1.78W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 4A |
| Input Capacitance (Ciss) (Max) @ Vds | 270pF @ 10V |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 4A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 3.4nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | MicroFET 3x3mm |
