FDMB2308PZ
MOSFET 2P-CH 6MLPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

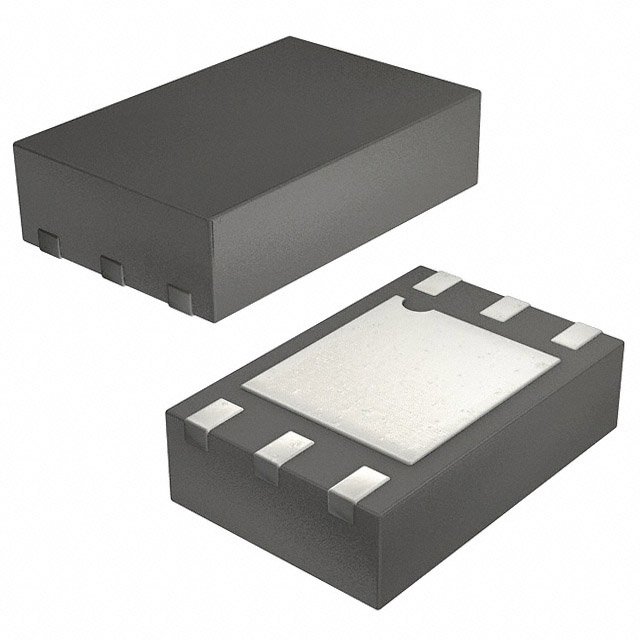

onsemi PowerTrench® FDMB2308PZ is a dual P-channel MOSFET array designed for efficient power switching applications. This device features a 6-MLP (2x3) package with an exposed pad for enhanced thermal performance. The FDMB2308PZ offers a low Rds(on) of 36mOhm at 5.7A and 4.5V, along with a logic-level gate for compatibility with lower voltage control signals. Key parameters include a gate charge (Qg) of 30nC at 10V and input capacitance (Ciss) of 3030pF at 10V. Operating across a temperature range of -55°C to 150°C, this MOSFET array is suitable for use in industrial automation, consumer electronics, and LED lighting control systems. The device is supplied in Tape & Reel packaging.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 800mW |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3030pF @ 10V |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 5.7A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | 6-MLP (2x3) |
