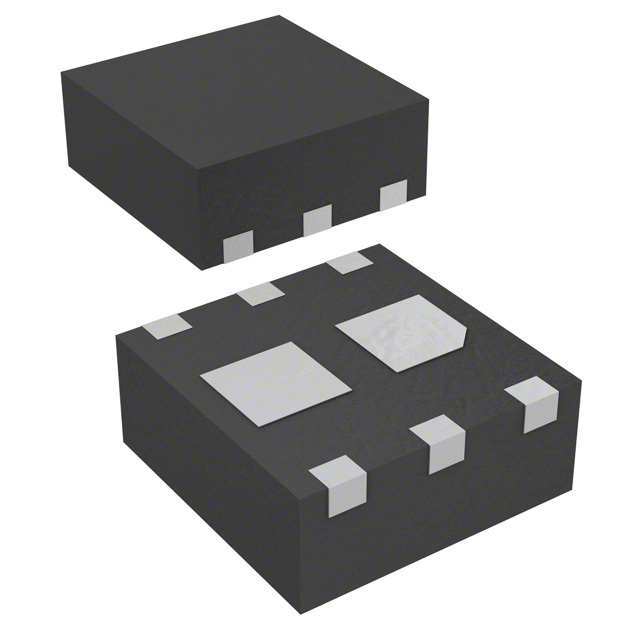

FDMA1024NZ
MOSFET 2N-CH 20V 5A 6MICROFETManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 5A 700mW Surface Mount 6-MicroFET (2x2)
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 700mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Input Capacitance (Ciss) (Max) @ Vds | 500pF @ 10V |
| Rds On (Max) @ Id, Vgs | 54mOhm @ 5A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 7.3nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-MicroFET (2x2) |
