FDJ1028N
MOSFET 2N-CH 20V 3.2A SC75-6Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

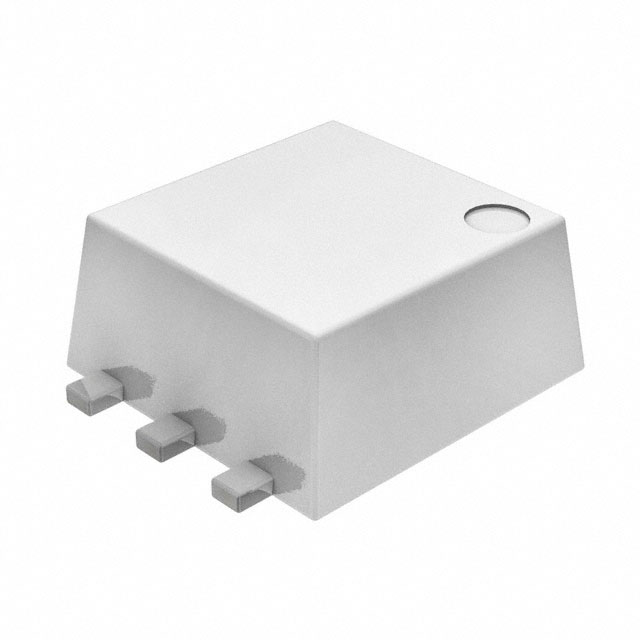

The onsemi PowerTrench® FDJ1028N is a dual N-channel MOSFET array housed in an SC-75-6 FLMP surface mount package, suitable for applications in consumer electronics and industrial automation. This component offers a 20V drain-source voltage (Vdss) and a continuous drain current (Id) of 3.2A at 25°C, with a maximum power dissipation of 1.5W. Key electrical characteristics include a low on-resistance (Rds On) of 90mOhm at 3.2A and 4.5V, a gate charge (Qg) of 3nC maximum at 4.5V, and input capacitance (Ciss) of 200pF maximum at 10V. The device features a logic level gate, with a threshold voltage (Vgs(th)) of 1.5V maximum at 250µA. It operates across a temperature range of -55°C to 150°C (TJ) and is provided in Tape & Reel packaging.
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-75-6 FLMP |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.5W |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.2A |
| Input Capacitance (Ciss) (Max) @ Vds | 200pF @ 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 3.2A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 3nC @ 4.5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SC75-6 FLMP |
