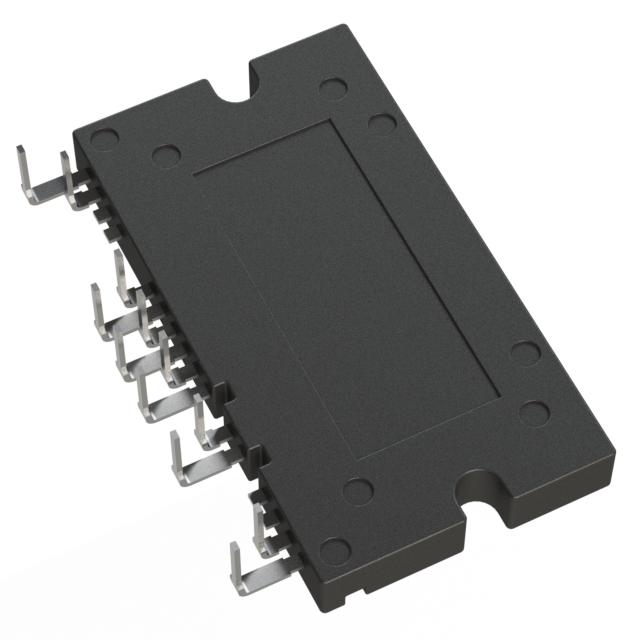

FAM65CR51ADZ1
MOSFET 2N-CH 650V 41A APMCD-B16Manufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 650V 41A (Tc) 189W (Tc) Through Hole APMCD-B16
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-SSIP Exposed Pad, Formed Leads |
| Mounting Type | Through Hole |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | 189W (Tc) |
| Drain to Source Voltage (Vdss) | 650V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 4864pF @ 400V |
| Rds On (Max) @ Id, Vgs | 51mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 123nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5V @ 3.3mA |
| Supplier Device Package | APMCD-B16 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
