EFC8811R-TF
MOSFET 2N-CH 6CSPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

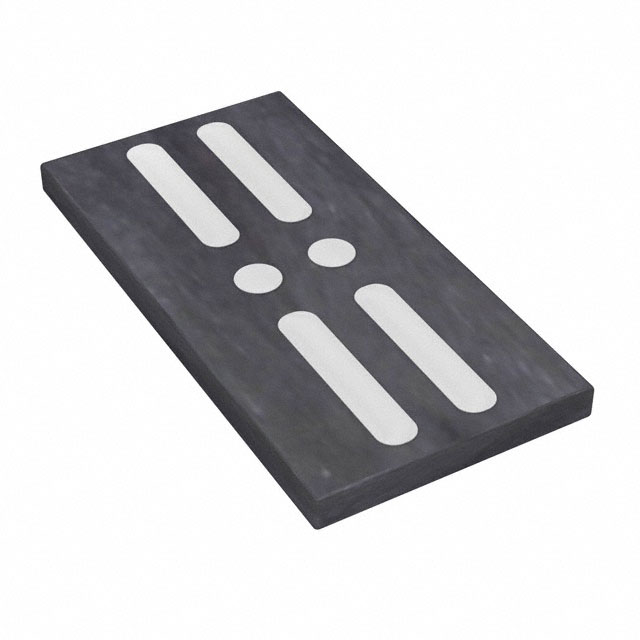

onsemi EFC8811R-TF is a dual N-channel MOSFET array in a 6-CSP (1.77x3.54) package. This surface mount component features logic-level gate drive, operable with a 2.5V gate voltage. The device supports a maximum power dissipation of 2.5W and an operating junction temperature up to 150°C. Its common drain configuration makes it suitable for applications requiring efficient switching and power management. Industries leveraging this component include consumer electronics and industrial automation. The EFC8811R-TF is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Rds On (Max) @ Id, Vgs | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | Logic Level Gate, 2.5V Drive |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 6-CSP (1.77x3.54) |
Request a Quote
