EFC6611R-TF
MOSFET 2N-CH 12V 27A 6CSPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

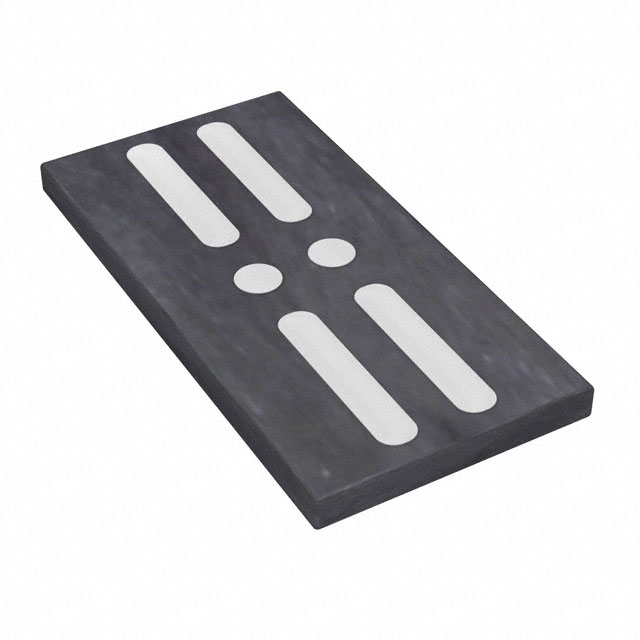

onsemi EFC6611R-TF is a 2 N-Channel MOSFET array in a 6-CSP (1.77x3.54) package. This device features a logic-level gate, optimized for 2.5V drive. It offers a maximum power dissipation of 2.5W and an operating junction temperature up to 150°C. The configuration is dual common drain, ideal for applications requiring efficient switching and power management in areas such as consumer electronics and portable devices. Supplied on tape and reel, this component is designed for surface mount assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Rds On (Max) @ Id, Vgs | - |
| Gate Charge (Qg) (Max) @ Vgs | 100nC @ 4.5V |
| FET Feature | Logic Level Gate, 2.5V Drive |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 6-CSP (1.77x3.54) |
