EFC6605R-V-TR
MOSFET 2N-CH 20V 10A 6EFCPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

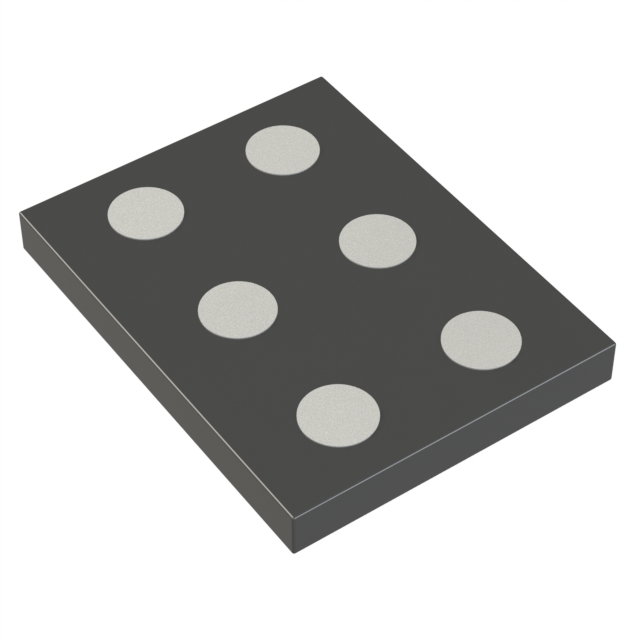

Mosfet Array 20V 10A (Ta) 1.6W (Ta) Surface Mount 6-EFCP (1.9x1.46)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.6W (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Rds On (Max) @ Id, Vgs | 13.3mOhm @ 3A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 19.8nC @ 4.5V |
| FET Feature | Logic Level Gate, 2.5V Drive |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Supplier Device Package | 6-EFCP (1.9x1.46) |
