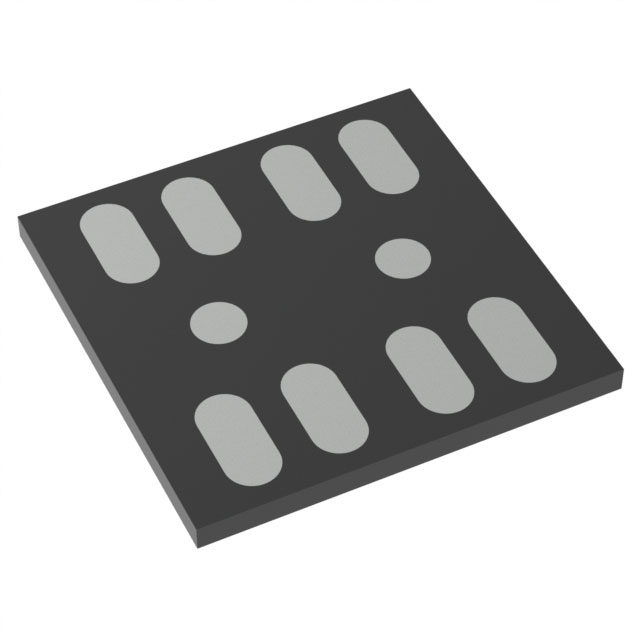

EFC2K107NUZTCG
MOSFET 2N-CH 12V 20A 10WLCSPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
onsemi EFC2K107NUZTCG is a 2 N-Channel MOSFET array featuring 12V drain-to-source voltage and a continuous drain current of 20A at 25°C. This device is housed in a compact 10-WLCSP (1.84x1.96) package, suitable for surface mount applications. The common drain configuration and logic level gate operation, with a 2.5V drive specification, make it efficient for low-voltage switching. It offers a low on-resistance of 2.85mOhm at 5A and 4.5V, with a maximum power dissipation of 1.8W. Key parameters include a gate charge of 30nC at 3.8V and an operating temperature up to 150°C. This component is utilized in industries such as consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.8W (Ta) |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Rds On (Max) @ Id, Vgs | 2.85mOhm @ 5A, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 3.8V |
| FET Feature | Logic Level Gate, 2.5V Drive |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Supplier Device Package | 10-WLCSP (1.84x1.96) |
