EFC2J013NUZTDG
MOSFET 2N-CH 6WLCSPManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More

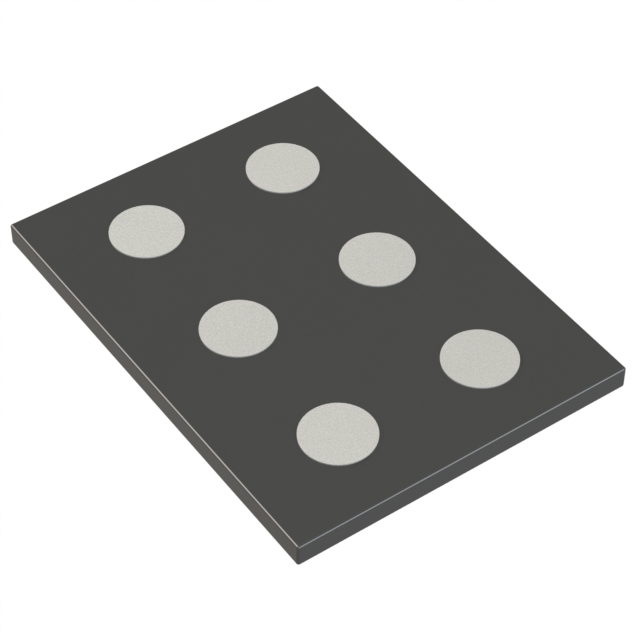

The onsemi EFC2J013NUZTDG is a dual N-channel MOSFET array featuring a common drain configuration. This surface mount component is housed in a compact 6-WLCSP (2x1.49) package, supplied on tape and reel. It offers a maximum power dissipation of 1.8W (Ta) and operates at junction temperatures up to 150°C. Key electrical parameters include a gate charge (Qg) of 37nC @ 4.5V and a threshold voltage (Vgs(th)) of 1.3V @ 1mA. This device is suitable for applications in consumer electronics and portable devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.8W (Ta) |
| Drain to Source Voltage (Vdss) | - |
| Current - Continuous Drain (Id) @ 25°C | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Rds On (Max) @ Id, Vgs | - |
| Gate Charge (Qg) (Max) @ Vgs | 37nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Supplier Device Package | 6-WLCSP (2x1.49) |
