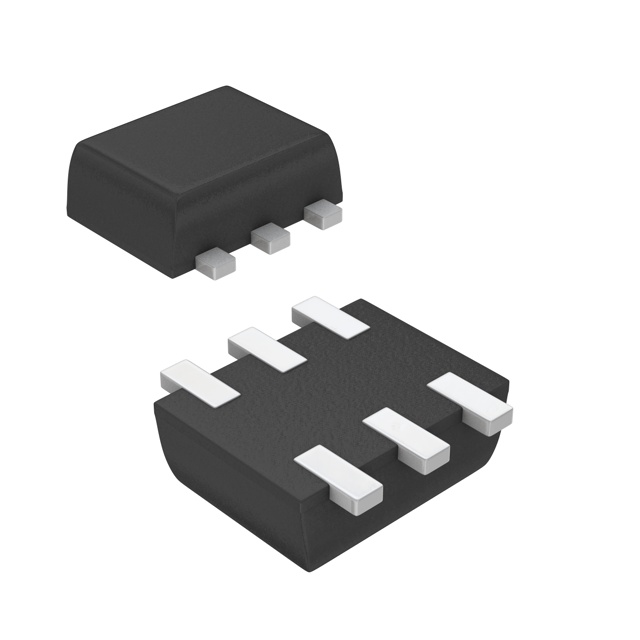

2N7002VA
MOSFET 2N-CH 60V 0.28A SOT563FManufacturer: onsemi
Categories: FET, MOSFET Arrays
Quality Control: Learn More
onsemi 2N7002VA is a dual N-channel MOSFET array designed for surface mount applications. This device features a Drain-Source Voltage (Vdss) of 60V and a continuous Drain current (Id) of 280mA at 25°C. The MOSFET array offers a low on-resistance (Rds On) of 7.5 Ohm maximum at 50mA, 5V and a power dissipation of 250mW. Operating across a temperature range of -55°C to 150°C, the 2N7002VA utilizes a logic level gate feature. It is supplied in a SOT-563F package, presented on tape and reel. This component is suitable for use in various applications, including consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 250mW |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 280mA |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Rds On (Max) @ Id, Vgs | 7.5Ohm @ 50mA, 5V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-563F |
