CM1418-02CP
FILTER LC(PI) 3NH/117PF ESD SMDManufacturer: onsemi
Categories: EMI/RFI Filters (LC, RC Networks)
Quality Control: Learn More
The onsemi Praetorian™ series CM1418-02CP is a 3rd order, 2-channel low-pass LC (Pi) filter designed for data line EMI suppression. Featuring inductance values of 3nH and capacitance of 117pF per channel, this component provides 35dB attenuation at 1GHz with a cutoff frequency of 22MHz. It supports a current rating of 500mA and includes integrated ESD protection. The CM1418-02CP is housed in a compact 6-WFBGA, WLCSP package measuring 1.72mm x 1.22mm with a height of 0.70mm, suitable for surface mounting. Its typical channel resistance is 0.28 Ohms. This filter is commonly utilized in mobile device data lines. The operating temperature range is -40°C to 85°C.
Additional Information
Series: Praetorian™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | - |
| Package / Case | 6-WFBGA, WLCSP |
| Size / Dimension | 0.067"" L x 0.048"" W (1.72mm x 1.22mm) |
| Mounting Type | Surface Mount |
| Type | Low Pass |
| Operating Temperature | -40°C ~ 85°C |
| Values | L = 3nH, C = 117pF |
| Height | 0.028"" (0.70mm) |
| Attenuation Value | 35dB @ 1GHz |
| Filter Order | 3rd |
| Applications | Data Lines for Mobile Devices |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | 22MHz (Cutoff) |
| Resistance - Channel (Ohms) | 0.28 |
| ESD Protection | Yes |
| Number of Channels | 2 |
| Current | 500 mA |
Request a Quote
Clients Also Buy

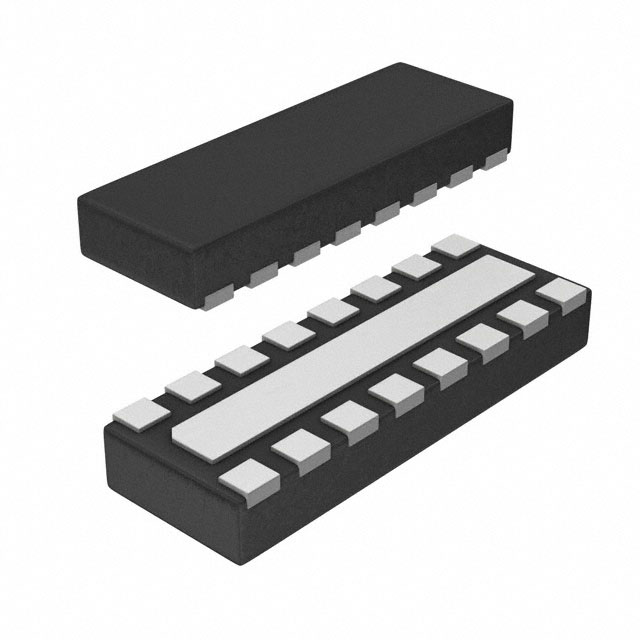

EMI5208MUTAG
