SS1003EJ-TR
DIODE ARR SCHOT 30V 1A 4ECSP1608Manufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

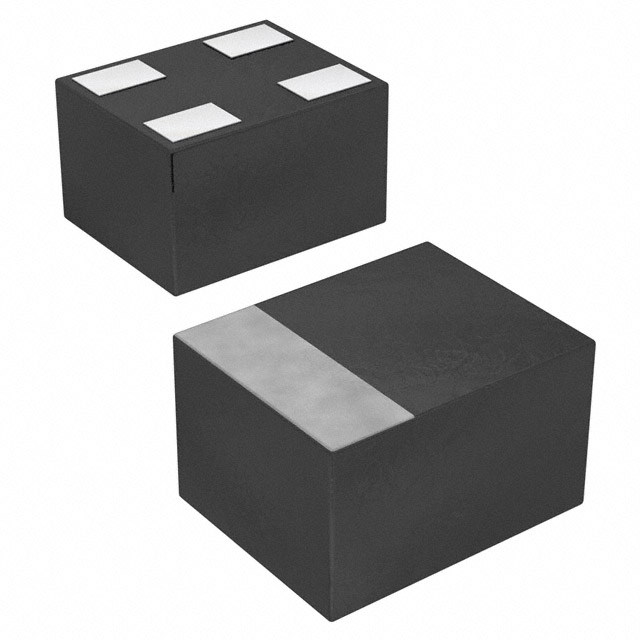

onsemi SS1003EJ-TR is a Schottky diode array featuring two independent diodes in a compact 4-ECSP1608 (4-UFDFN) surface mount package. Each diode offers a maximum DC reverse voltage of 30V and a forward voltage of 450mV at 1A. With an average rectified current capability of 1A per diode, this component exhibits a reverse leakage of 360µA at 15V. The SS1003EJ-TR is designed for fast switching applications, indicated by its 10ns reverse recovery time and classified as Fast Recovery. Operating across a junction temperature range of -55°C to 125°C, this device is suitable for various applications in the automotive and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-UFDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 1A |
| Supplier Device Package | 4-ECSP1608 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 360 µA @ 15 V |
