SBS811-TL-E
DIODE ARRAY SCHOTTKY 30V 2A 8VECManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

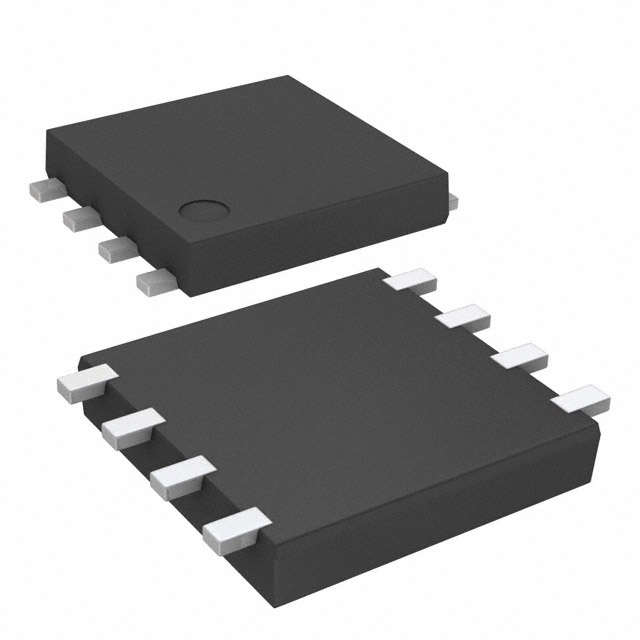

The onsemi SBS811-TL-E is a Schottky diode array featuring 2 independent diodes in a 8-VEC package. This surface mount component offers a maximum DC reverse voltage of 30V and a forward voltage drop of 400mV at 2A. Each diode can handle an average rectified forward current (Io) of 2A, with a reverse leakage current of 1.25mA at 15V. The device operates across a junction temperature range of -55°C to 125°C. With a reverse recovery time of 20ns, it is classified as a fast recovery diode. This component is suited for applications in power management and protection circuits within the automotive and industrial sectors. The SBS811-TL-E is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 2A |
| Supplier Device Package | 8-VEC |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 400 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 1.25 mA @ 15 V |
