SBE807-TL-W
DIODE ARRAY SCHOTTKY 30V 1A 5CPHManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

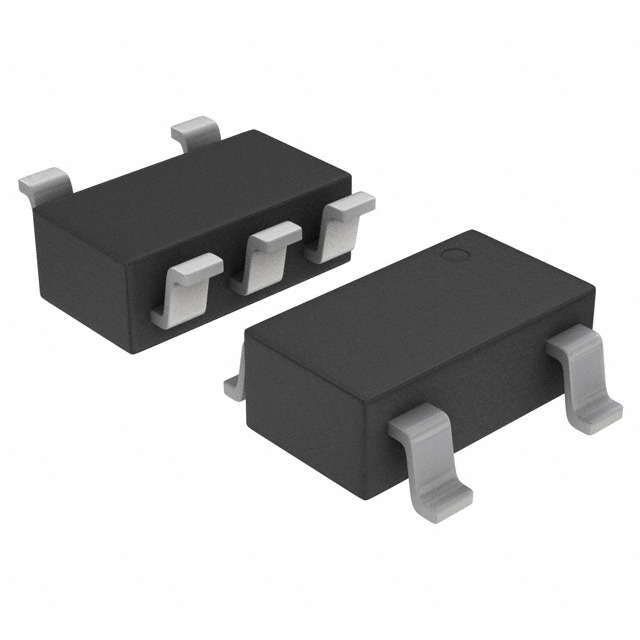

onsemi SBE807-TL-W is a Schottky diode array featuring two independent diodes, each rated for a maximum DC reverse voltage of 30V and capable of handling 1A average rectified current. This device exhibits a forward voltage drop of 530mV at 1A and a reverse leakage current of 15µA at 16V. With a fast recovery time of 10ns, it is suitable for applications requiring high-speed switching. The diode array is housed in a compact SC-74A (SOT-753) package, designed for surface mounting and supplied on tape and reel for automated assembly. Its performance characteristics make it a suitable component for power management, telecommunications, and consumer electronics applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 1A |
| Supplier Device Package | 5-CPH |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 15 µA @ 16 V |
