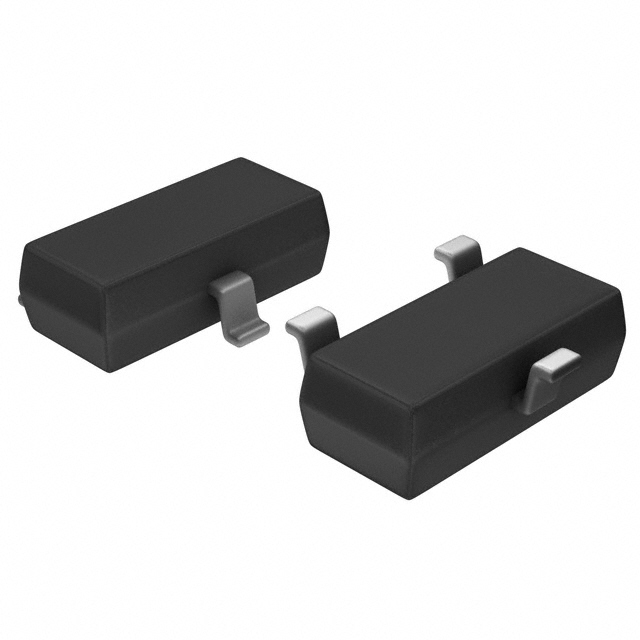

SB05W05C-TB-E
DIODE ARR SCHOTT 50V 500MA 3CPManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 50 V 500mA Surface Mount TO-236-3, SC-59, SOT-23-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 500mA |
| Supplier Device Package | 3-CP |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 25 V |
| Qualification | AEC-Q101 |
