NTSB40120CT-1G
DIODE ARR SCHOTT 120V 20A I2PAKManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

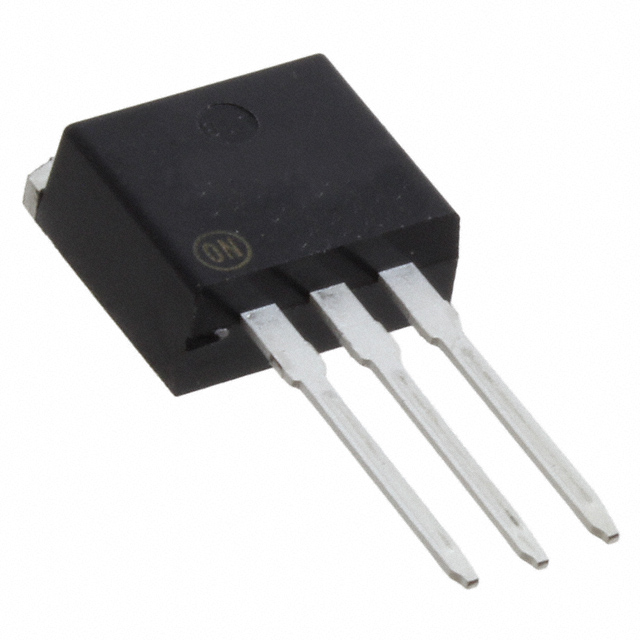

The onsemi NTSB40120CT-1G is a Schottky diode array featuring a common cathode configuration with two diodes. This through-hole component, housed in a TO-262 (I2PAK) package, offers a maximum DC reverse voltage of 120V and an average rectified current of 20A per diode. Its forward voltage is rated at 910mV at 20A, with a reverse leakage of 500 µA at 120V. The operating junction temperature range is -40°C to 150°C. This diode array is commonly utilized in power factor correction, switch mode power supplies, and automotive applications. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | TO-262 (I2PAK) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Voltage - Forward (Vf) (Max) @ If | 910 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 120 V |
