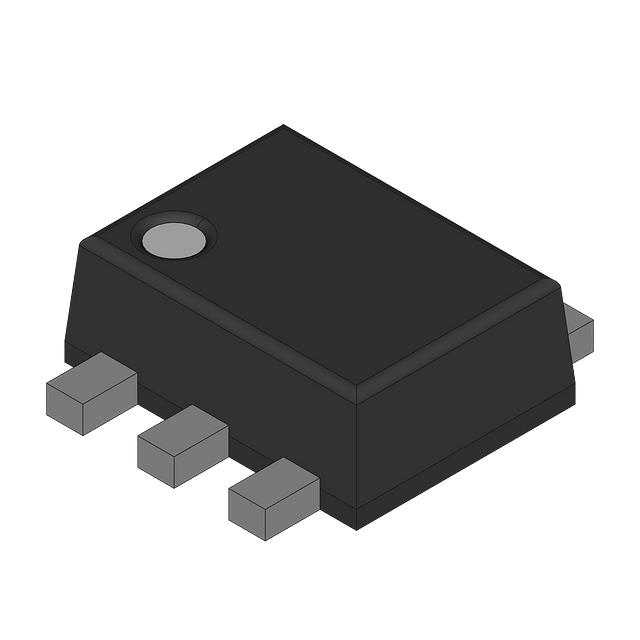

NSVBAV70DXV6T5G
NSVBAV70D - SWITCHING DIODE, QUAManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 100 V 200mA (DC) Surface Mount SOT-563, SOT-666
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Supplier Device Package | SOT-563 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
| Qualification | AEC-Q101 |
Request a Quote
