NRVTS660MFDWFT1G
DIODE ARRAY SCHOTTKY 60V 3A 8DFNManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

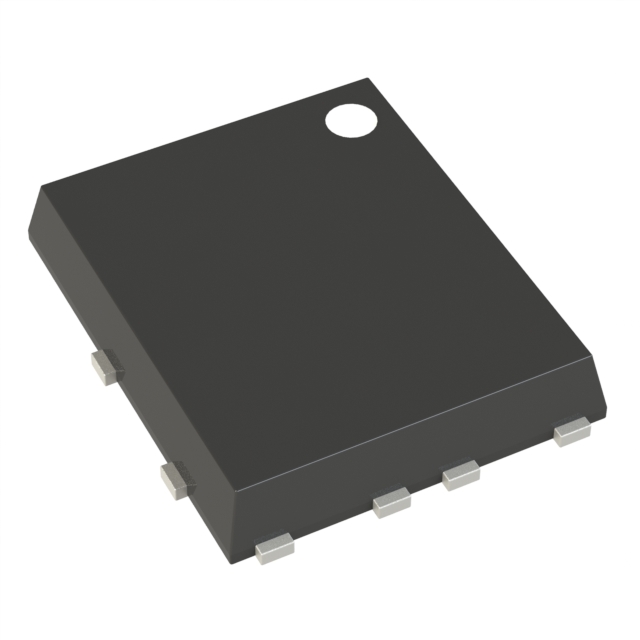

The onsemi NRVTS660MFDWFT1G is a dual independent Schottky diode array designed for demanding automotive applications. This component features a 60V reverse voltage rating and a 3A average rectified current capability per diode. Its 8-PowerTDFN (SO8FL-Dual) package with a 5x6 footprint facilitates efficient surface mounting. The device boasts low forward voltage drop of 630mV at 3A and a reverse leakage of 55µA at 60V. Operating across a junction temperature range of -55°C to 175°C, it meets AEC-Q101 qualification standards. The NRVTS660MFDWFT1G is suitable for power management and protection circuits in automotive infotainment and advanced driver-assistance systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 3A |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 55 µA @ 60 V |
| Qualification | AEC-Q101 |
