MUR3060PT
DIODE ARRAY GP 600V 15A SOT93Manufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

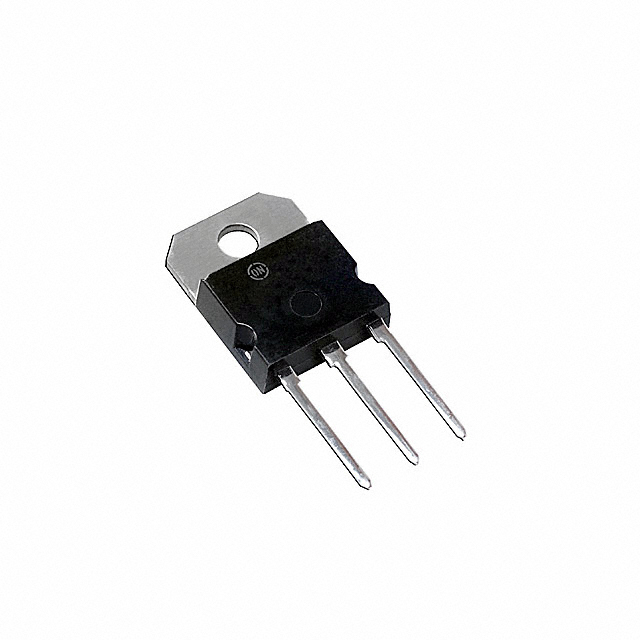

The onsemi SWITCHMODE™ MUR3060PT is a high-performance general-purpose diode array housed in a TO-218-3 (SOT-93) package. This dual diode configuration features a common cathode arrangement, offering a DC reverse voltage rating of 600V and an average rectified current capability of 15A per diode. With a fast recovery time of 60 ns, it is suitable for demanding applications requiring efficient switching. The forward voltage drop is a maximum of 1.5V at 15A, and the reverse leakage current is rated at 10 µA at 600V. Operating across a junction temperature range of -65°C to 175°C, this component is commonly found in power supply rectification, motor control, and industrial power conversion systems. It is supplied in a tube.
Additional Information
Series: SWITCHMODE™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-218-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | SOT-93 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
