MBRB30H60CT-1G
DIODE ARR SCHOTT 60V 15A I2PAKManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

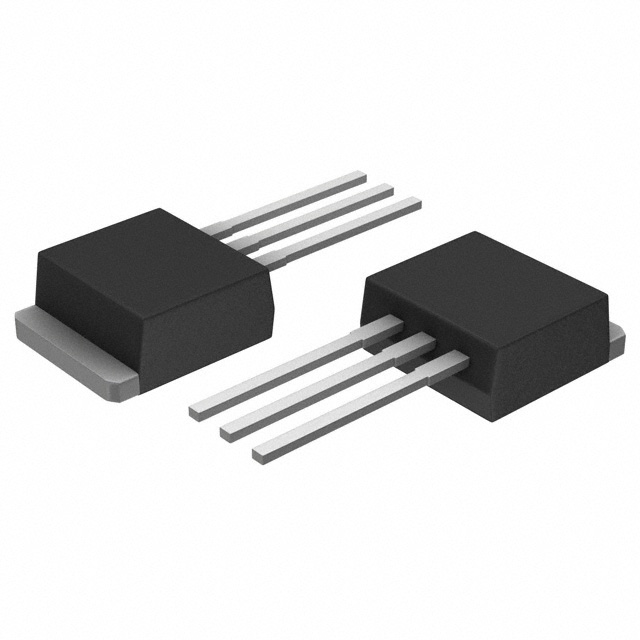

The onsemi MBRB30H60CT-1G is a SWITCHMODE™ series Schottky diode array featuring a common cathode configuration with two diodes. This device offers a maximum DC reverse voltage of 60V and a high forward current capability of 15A per diode. The forward voltage drop at 15A is a low 620mV, contributing to efficient power conversion. Its reverse leakage current is rated at 300 µA at 60V. Designed for through-hole mounting, it utilizes the TO-262 (I2PAK) package, also known as TO-262-3 Long Leads or TO-262AA. The operating junction temperature range is -55°C to 175°C. This component is suitable for applications requiring high efficiency and fast switching, commonly found in power supply units, automotive electronics, and industrial control systems.
Additional Information
Series: SWITCHMODE™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-262 (I2PAK) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 60 V |
