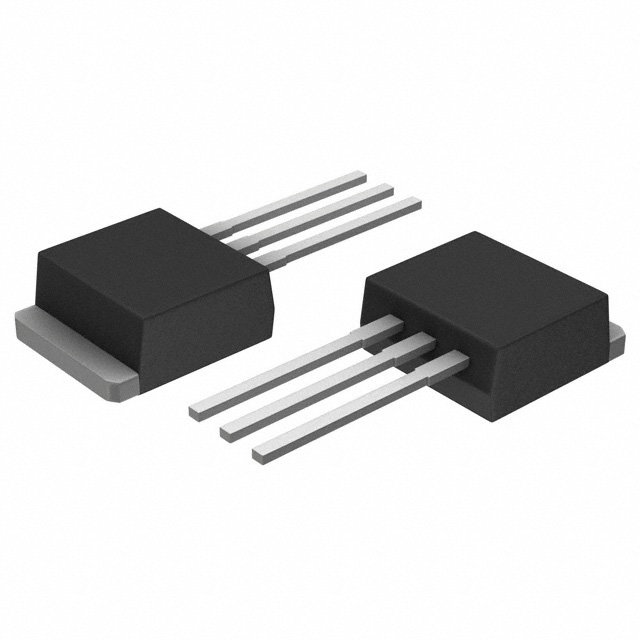

MBRB3045CT-1G
DIODE ARR SCHOTT 45V 15A I2PAKManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More
The onsemi SWITCHMODE™ MBRB3045CT-1G is a Schottky diode array featuring a 1 pair common cathode configuration. This component offers a maximum DC reverse voltage (Vr) of 45 V and an average rectified current (Io) of 15A per diode. The forward voltage (Vf) is rated at a maximum of 620 mV at 15 A. Designed for efficient switching, it exhibits a speed classification of fast recovery, with characteristics typically less than 500 ns for currents greater than 200 mA. The reverse leakage current at Vr is specified at 200 µA @ 45 V. Packaged in a TO-262 (I2PAK) surface-mount package with long leads, it is suitable for through-hole mounting. The operating junction temperature range is from -65°C to 175°C. This diode array is commonly employed in power supply rectification and power switching applications across various industrial sectors.
Additional Information
Series: SWITCHMODE™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-262 (I2PAK) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
