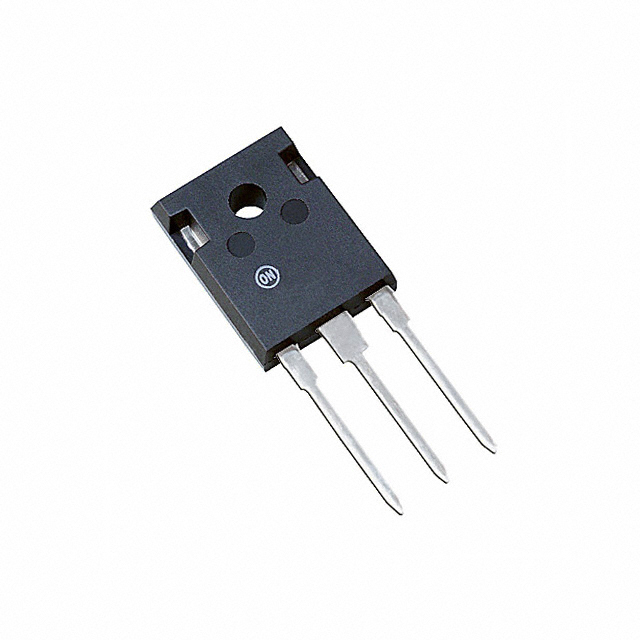

MBR4045WTG
DIODE ARR SCHOTT 45V 20A TO247-3Manufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More
onsemi MBR4045WTG is a SWITCHMODE™ series Schottky diode array featuring a common cathode configuration. This component offers a maximum DC reverse voltage (Vr) of 45V and an average rectified current (Io) of 20A per diode. The forward voltage (Vf) is a maximum of 700mV at 20A, with a reverse leakage current of 1mA at 45V. Designed for through-hole mounting, it is housed in a TO-247-3 package. Operating junction temperatures range from -65°C to 175°C. This diode array is suitable for applications in power supply, automotive, and industrial control systems.
Additional Information
Series: SWITCHMODE™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | TO-247-3 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 45 V |
