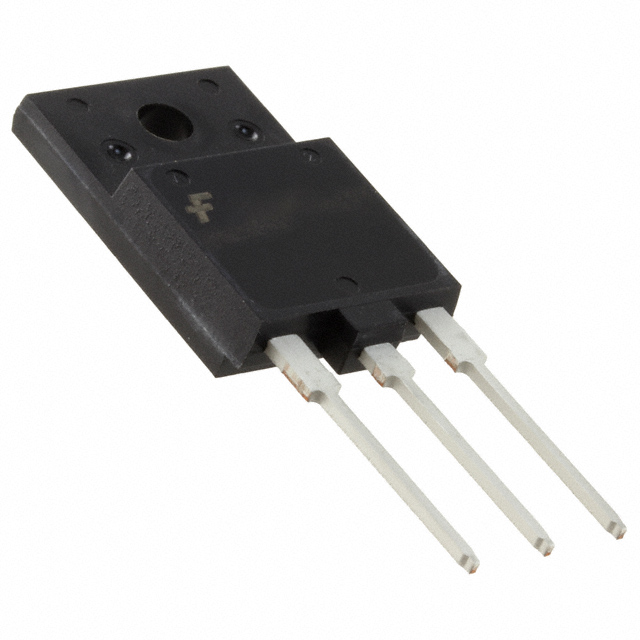

FFAF60UA60DN
DIODE ARRAY GP 600V 30A TO3PFManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More
The onsemi FFAF60UA60DN is a high-performance diode array featuring a common cathode configuration. This component offers a 600V reverse voltage rating and a 30A average rectified current per diode. It exhibits a forward voltage drop of 2.2V at 30A and a reverse leakage current of 100 µA at 600V. With a fast recovery time of 90 ns, this diode array is suitable for applications requiring efficient power switching. The device operates across a junction temperature range of -65°C to 150°C and is housed in a TO-3PF package for through-hole mounting. Industries such as industrial power supplies, motor control, and electric vehicle charging benefit from the robust performance of this diode array.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 90 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Supplier Device Package | TO-3PF |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
