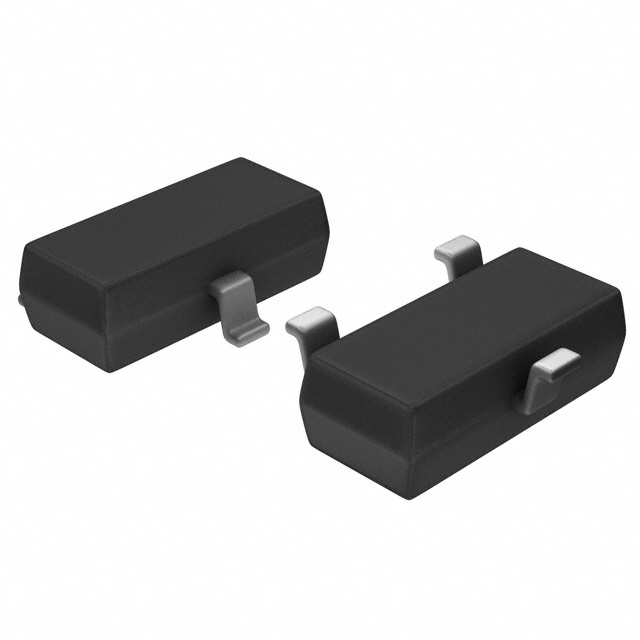

DCB010-TB-E
DIODE ARRAY GP 80V 100MA 3CPManufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More
The onsemi DCB010-TB-E is a general-purpose diode array featuring a common cathode configuration. This surface mount component, packaged in a TO-236-3, SC-59, SOT-23-3 (3-CP) housing and supplied on tape and reel, offers a maximum DC reverse voltage of 80V. Each diode within the array has a maximum forward voltage of 1.2V at 100mA and a forward current handling capability of 100mA average rectified. Characterized by a low reverse leakage of 100 nA @ 80V and a reverse recovery time of 4 ns, this small signal diode array is suitable for applications requiring fast switching and low power dissipation. It finds utility in various electronic systems, including consumer electronics and telecommunications infrastructure. The maximum operating junction temperature is 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Supplier Device Package | 3-CP |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V |
