BAW56T
DIODE ARRAY GP 85V 75MA SOT523Manufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

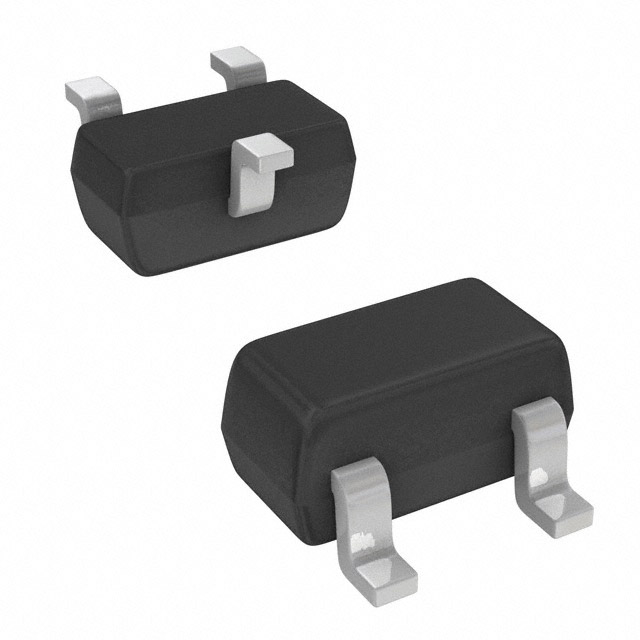

The onsemi BAW56T is a dual diode array featuring a common anode configuration, housed in a compact SOT-523 surface-mount package. This component offers a maximum reverse voltage (Vr) of 85V and a rectified average forward current (Io) of 75mA per diode. With a low forward voltage drop (Vf) of 1V at 50mA and a fast reverse recovery time (trr) of 4ns, it is suitable for high-speed switching applications. The reverse leakage current is rated at 2µA at 75V. Operating at a maximum junction temperature of 125°C, this device is commonly utilized in telecommunications, consumer electronics, and industrial control systems requiring efficient signal switching and protection. The BAW56T is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-523 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 75mA |
| Supplier Device Package | SOT-523 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 75 V |
