1SS383T1G
DIODE ARR SCHOTT 40V 300MA SC82Manufacturer: onsemi
Categories: Diode Arrays
Quality Control: Learn More

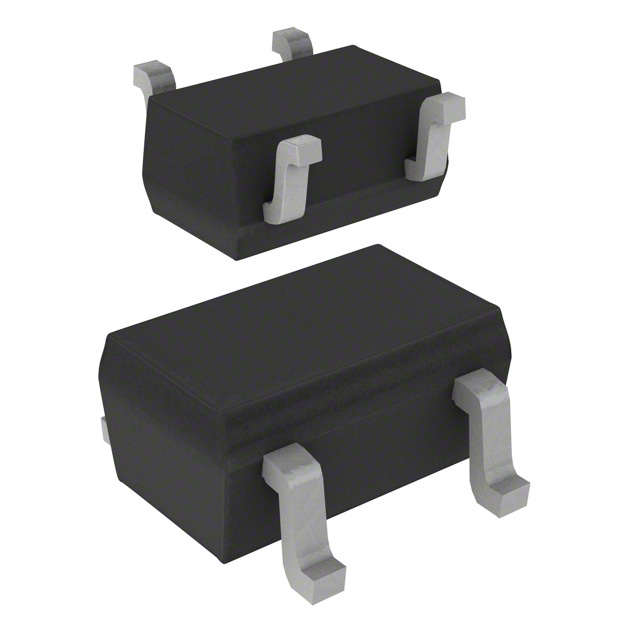

onsemi 1SS383T1G is a surface mount diode array featuring two independent Schottky diodes. Each diode is rated for a maximum DC reverse voltage of 40V and can handle an average rectified current of 300mA. The diodes exhibit a forward voltage of 600mV at 100mA and a low reverse leakage current of 5µA at 40V. The component utilizes Schottky technology for fast switching characteristics, with a speed designation of Fast Recovery =< 500ns, > 200mA (Io). The 1SS383T1G is supplied in an SC-82 package and is delivered on a Tape & Reel (TR) for automated assembly. This diode array is suitable for applications in consumer electronics and industrial equipment requiring efficient rectification and fast switching.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-82 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 300mA (DC) |
| Supplier Device Package | SC-82 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 40 V |
