CAT5114ZD7I00GT3
IC POT DIGITAL 100K 32TAP 8TDFNManufacturer: onsemi
Categories: Digital Potentiometers
Quality Control: Learn More

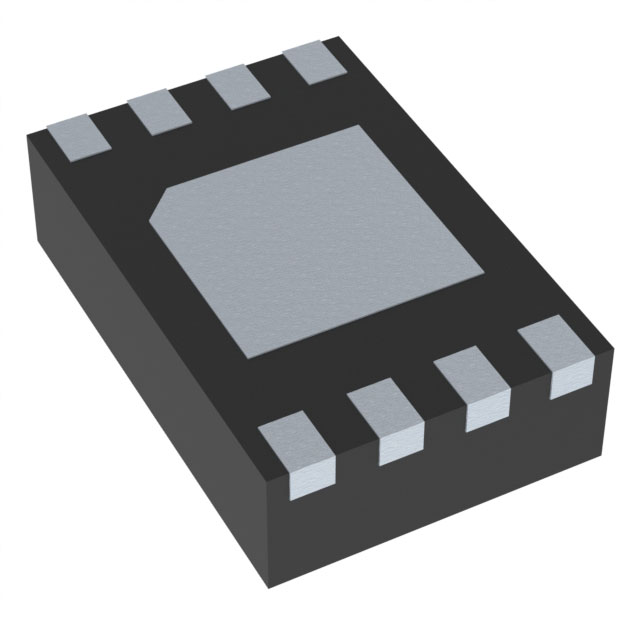

The onsemi CAT5114ZD7I00GT3 is a single-circuit, 32-tap digital potentiometer with a resistance of 100k Ohms and a linear taper. This device features an Up/Down (U/D, INC, CS) interface for precise control. It is housed in an 8-TDFN (2.0x2.5) package, suitable for surface mounting via tape and reel. The CAT5114ZD7I00GT3 operates within a voltage supply range of 2.5V to 6V and has a typical temperature coefficient of 300ppm/°C. Its non-volatile memory ensures settings are retained. This component finds application in consumer electronics, industrial automation, and medical devices.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | Up/Down (U/D, INC, CS) |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 32 |
| Voltage - Supply | 2.5V ~ 6V |
| Taper | Linear |
| Supplier Device Package | 8-TDFN (2.0x2.5) |
| Resistance - Wiper (Ohms) (Typ) | 150 |
| Temperature Coefficient (Typ) | 300ppm/°C |
| Number of Circuits | 1 |
| Programmable | Not Verified |
