MC10E196FNR2G
IC DELAY LINE 128TAP PROG 28PLCCManufacturer: onsemi
Categories: Delay Lines
Quality Control: Learn More

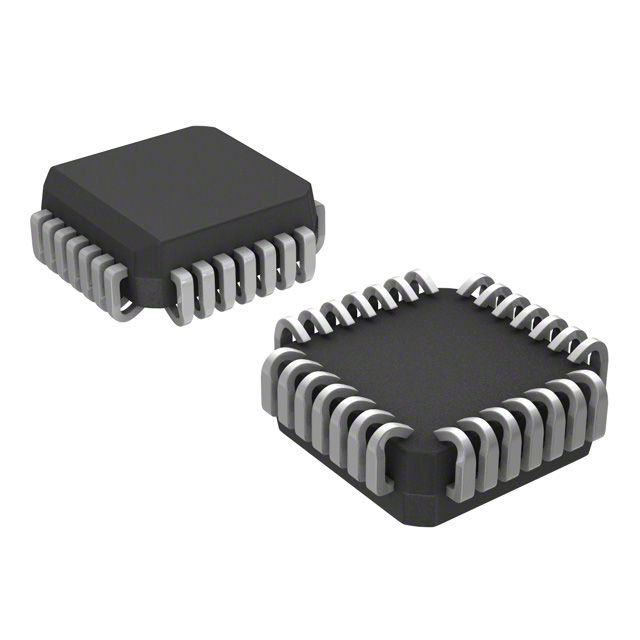

The onsemi MC10E196FNR2G is a 128-tap programmable delay line from the 10E series. This surface-mount component offers a total available delay range from 1.39ns to 3.63ns, with a tap increment of 20 ps. The delay to the first tap is 1.39ns. It features a single independent delay path and operates with a supply voltage between 4.2V and 5.7V. The component is housed in a 28-PLCC (J-Lead) package. This device is utilized in telecommunications, data acquisition, and high-speed digital signal processing applications. The MC10E196FNR2G is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: 10ERoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Function | Programmable |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 4.2V ~ 5.7V |
| Number of Taps/Steps | 128 |
| Delay to 1st Tap | 1.39ns |
| Number of Independent Delays | 1 |
| Available Total Delays | 1.39ns ~ 3.63ns |
| Tap Increment | 20 ps |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
