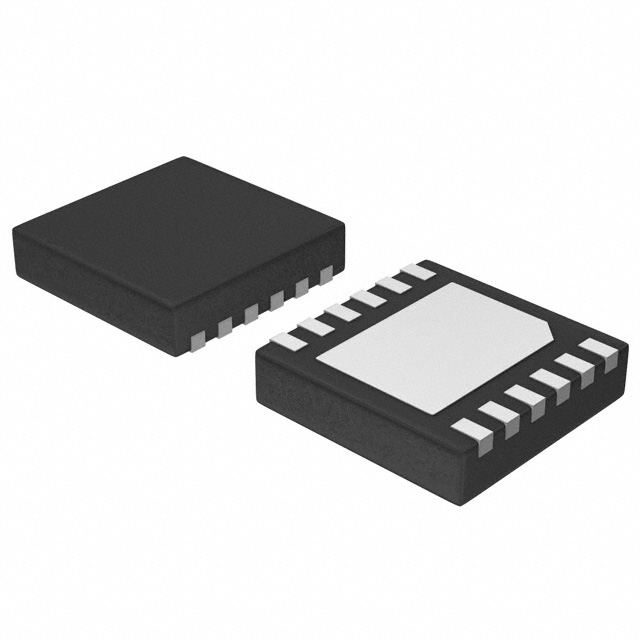

NCV890104MWR2G
IC REG BUCK ADJ 1.2A 12DFNManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCV890104MWR2G is a high-performance, adjustable output buck switching regulator designed for demanding automotive applications. This device offers a robust step-down conversion capability with a maximum output current of 1.2A and an input voltage range from 4.5V to 36V. Featuring a fixed switching frequency of 2MHz, it enables efficient power conversion with compact external component selection. The output voltage is adjustable from a minimum of 0.8V up to 34V, providing design flexibility. This AEC-Q100 qualified component is housed in a 12-VDFN exposed pad package, suitable for surface mounting and operating across a junction temperature range of -40°C to 150°C. Its architecture does not incorporate a synchronous rectifier. Applications include automotive power systems, advanced driver-assistance systems (ADAS), and infotainment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 12-DFN (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 34V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
