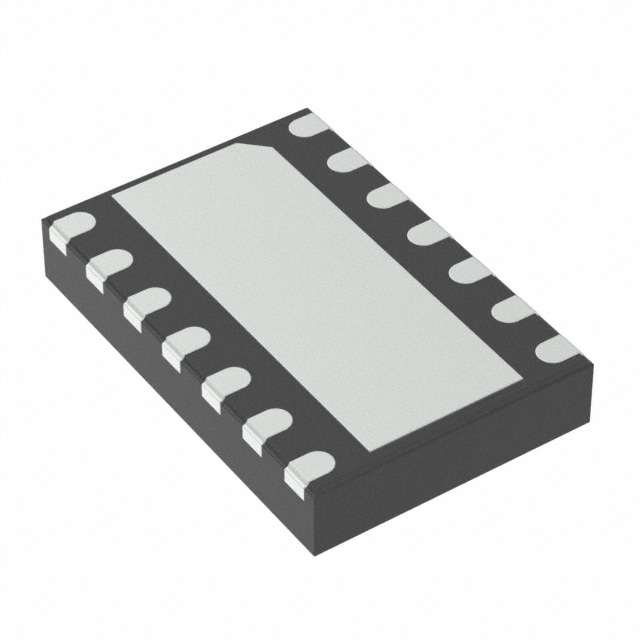

NCV6356CMTWTXG
IC REG BUCK PROG 0.6V 14WDFNWManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCV6356CMTWTXG is a highly efficient synchronous buck switching regulator. This component delivers a programmable output voltage down to 0.6V with a maximum output current of 5A. Operating with an input voltage range of 2.5V to 5.5V, it features a switching frequency of up to 2.4MHz, enabling compact external component selection. The 14-WFDFN exposed pad package with wettable flanks facilitates automated optical inspection and improved solder joint reliability. Its positive output configuration and step-down topology are well-suited for applications in automotive, industrial control, and consumer electronics requiring robust power conversion. The NCV6356CMTWTXG is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | Programmable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 2.4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 14-WDFNW (4x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 1.4V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
