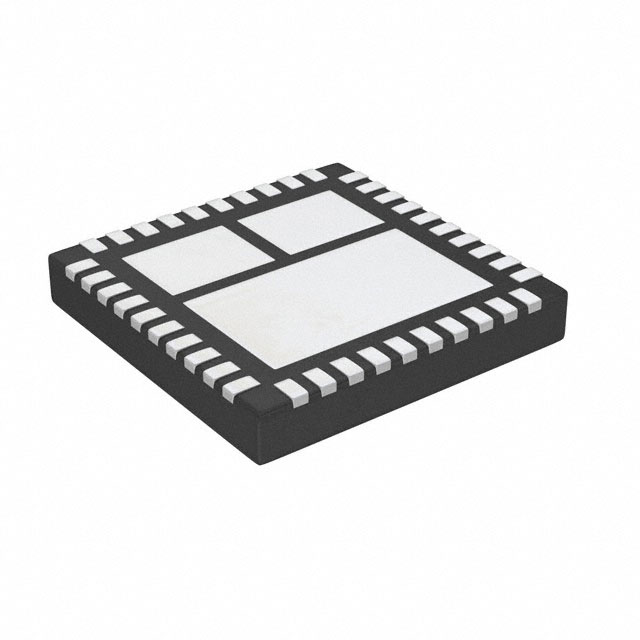

NCP3231AMNTXG
IC REG BUCK ADJ 25A 40QFNManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCP3231AMNTXG is a high-performance, adjustable output buck switching regulator designed for demanding power conversion applications. This monolithic IC provides a step-down voltage conversion with a maximum output current of 25A and an adjustable output voltage range from 0.6V to 16.56V. Operating with an input voltage range of 4.5V to 18V, it features a fixed switching frequency of 500kHz, enabling efficient power delivery. The integrated synchronous rectifier enhances efficiency, making it suitable for use in various industrial and automotive systems where robust power management is critical. Supplied in a 40-pin QFN (6x6) package with an exposed pad for thermal management, and available on tape and reel, the NCP3231AMNTXG is engineered for surface mount assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 25A |
| Operating Temperature | -40°C ~ 90°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | 40-QFN (6x6) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 16.56V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
