NCP3101CMNTXG
IC REG BUCK ADJ 6A 40QFNManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCP3101CMNTXG is a high-performance buck switching regulator with an adjustable output voltage. This device delivers up to 6A of output current and operates with a switching frequency of 275kHz. Designed for efficient step-down conversion, it features a positive adjustable output with a minimum voltage of 0.8V and a maximum output voltage of 11.68V. The NCP3101CMNTXG supports input voltages ranging from 4.5V to 13.2V. Its 40-VFQFN Exposed Pad package, also known as 40-QFN (6x6), is suitable for surface mounting. This regulator includes a synchronous rectifier for enhanced efficiency. It is utilized in applications such as power supplies for computing, industrial, and consumer electronics. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

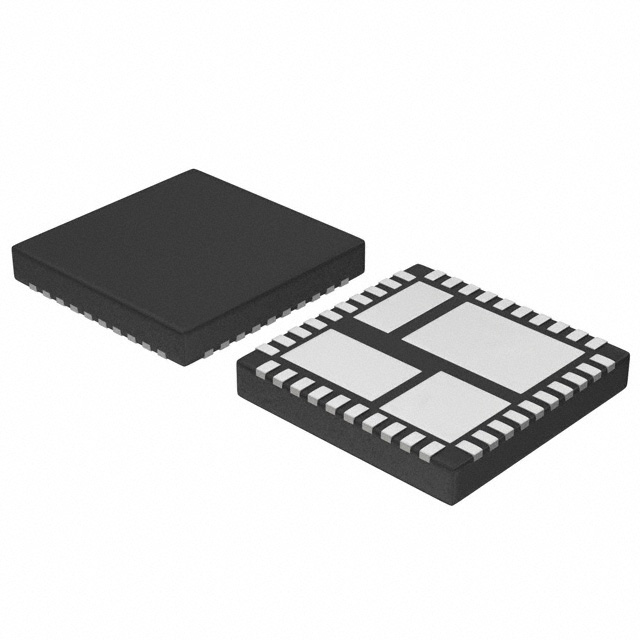

| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 275kHz |
| Voltage - Input (Max) | 13.2V |
| Topology | Buck |
| Supplier Device Package | 40-QFN (6x6) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 11.68V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
