NCP1595AMNR2G
IC REG BUCK ADJ 1.5A 6DFNManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCP1595AMNR2G is a high-performance, adjustable output buck switching regulator designed for efficient power conversion. This device delivers a 1.5A output current with a switching frequency of 1MHz, enabling compact and efficient power supply designs. It features a positive adjustable output voltage, adjustable from 0.8V to 4.68V, with a maximum input voltage of 5.5V. The NCP1595AMNR2G utilizes a synchronous buck topology, incorporating an integrated synchronous rectifier for enhanced efficiency. This component is housed in a 6-VDFN exposed pad package, suitable for surface mount applications. Its operating temperature range is -40°C to 125°C (TA). The NCP1595AMNR2G finds application in various industries including consumer electronics, industrial automation, and portable devices. It is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

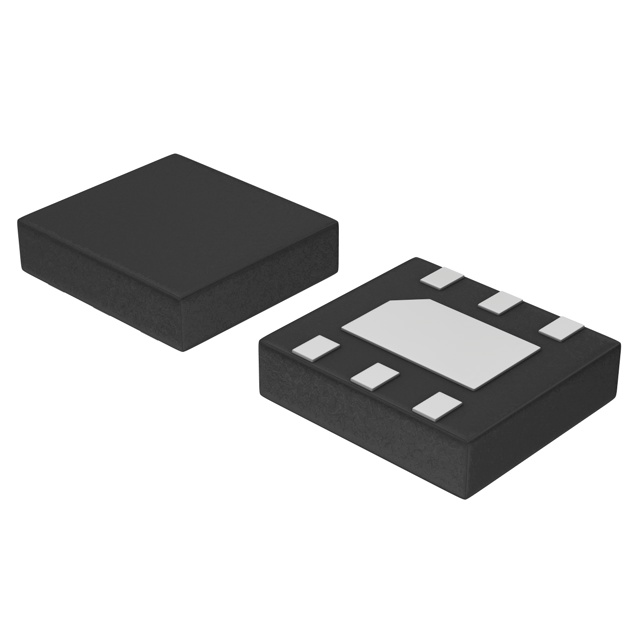

| Package / Case | 6-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-DFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 4.68V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 0.8V |
