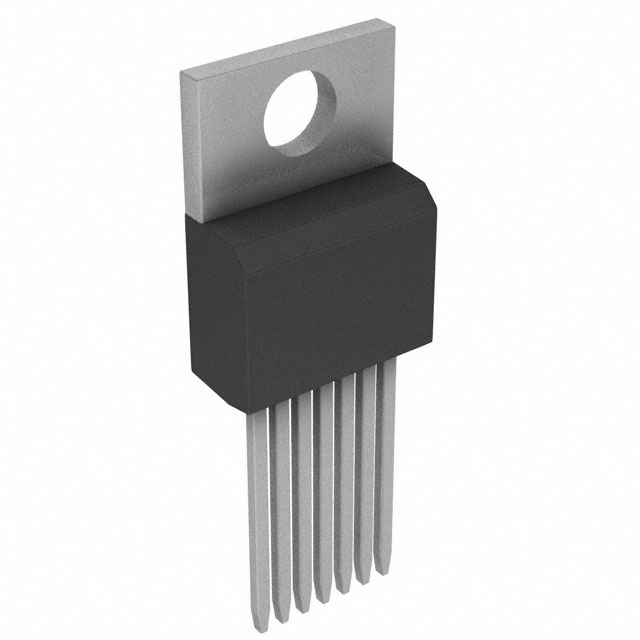

NCP1444T
IC REG MULT CONFIG ADJ 4A TO220Manufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCP1444T is a versatile switching controller IC designed for a wide range of power conversion applications. This adjustable positive output regulator features a robust 4A switch current capability, enabling efficient operation in Boost, Flyback, Forward Converter, and SEPIC topologies. With an operating frequency of 560kHz and input voltage range from 2.7V to 30V, it is well-suited for automotive, industrial, and consumer electronics power management systems. The NCP1444T is housed in a TO-220-7 package, facilitating through-hole mounting. Its adjustable output configuration provides design flexibility, and the device operates reliably within a junction temperature range of 0°C to 150°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-220-7 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 4A (Switch) |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 560kHz |
| Voltage - Input (Max) | 30V |
| Topology | Boost, Flyback, Forward Converter, SEPIC |
| Supplier Device Package | TO-220-7 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | - |
