NCP1032BMNTXG
IC REG FLYBCK FWRD 8WDFNManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi NCP1032BMNTXG is a high-performance switching regulator IC designed for flyback and forward converter topologies. This device operates with a switching frequency of 960kHz and supports input voltages ranging from 10.5V to 200V, offering flexibility for various power supply designs. Featuring one positive output, it is isolation capable, making it suitable for applications requiring galvanic isolation. The NCP1032BMNTXG is housed in an 8-WDFN exposed pad package, facilitating efficient surface mounting. Its robust design and wide operating temperature range of -40°C to 125°C (TJ) ensure reliable performance in demanding environments, including power supplies for industrial automation and consumer electronics. The absence of a synchronous rectifier simplifies the external component count.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

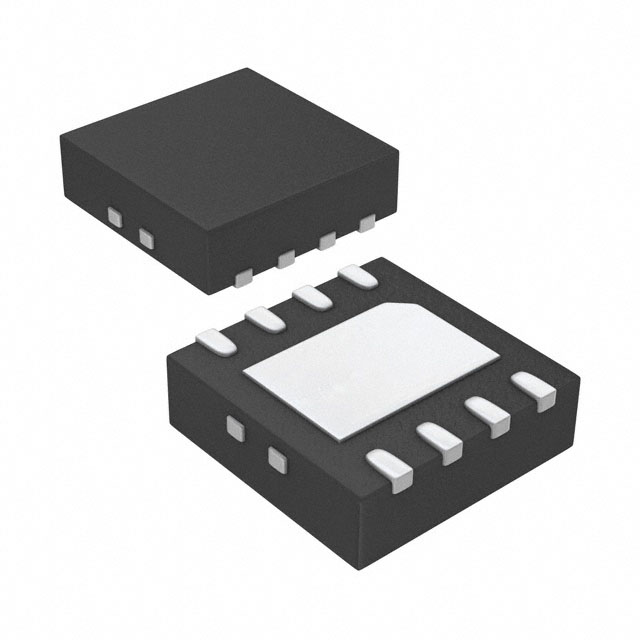

| Package / Case | 8-WDFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 960kHz |
| Voltage - Input (Max) | 200V |
| Topology | Flyback, Forward Converter |
| Supplier Device Package | 8-WDFN (3x3) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 10.5V |
| Voltage - Output (Min/Fixed) | - |
