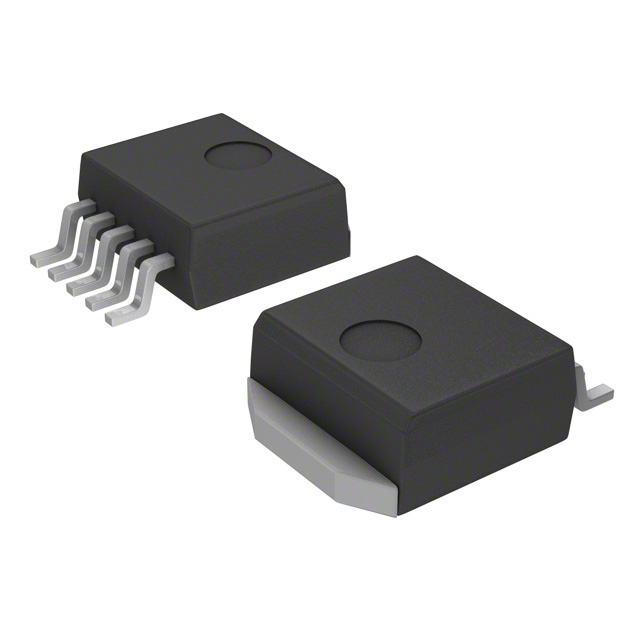

LM2596DSADJG
IC REG MULT CONFG ADJ 3A D2PAK-5Manufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck, Boost, Buck-Boost |
| Supplier Device Package | D2PAK-5 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 37V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 1.23V |
