FAN53703UC48X
IC REG BUCK 3V 1A 6WLCSPManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi FAN53703UC48X is a high-performance buck switching regulator designed for efficient power conversion. This device provides a fixed 3V output with a 1A current capability. Its step-down topology and integrated synchronous rectifier contribute to its high efficiency. Operating at a switching frequency of 2.5MHz, the FAN53703UC48X is housed in a compact 6-WLCSP package, making it suitable for space-constrained applications. The operating temperature range is -40°C to 85°C. This component is utilized in various industries, including consumer electronics and industrial automation, where reliable and efficient voltage regulation is critical. The FAN53703UC48X is supplied on a tape and reel for surface mount assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

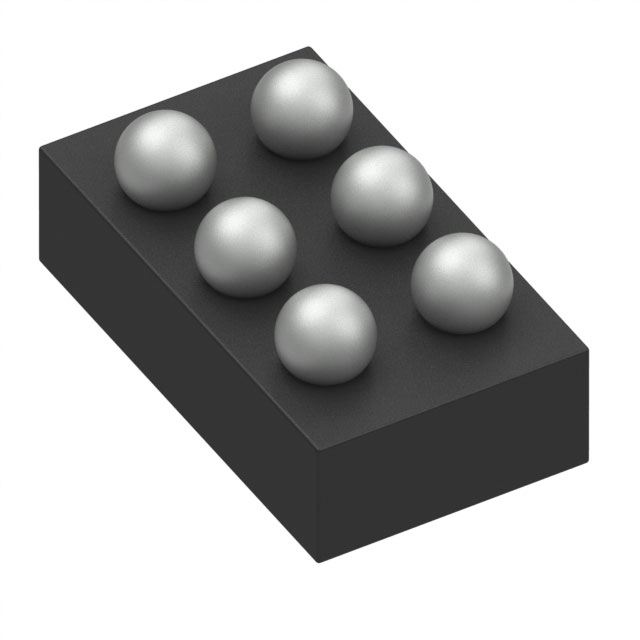

| Package / Case | 6-UFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-WLCSP (1.38x0.94) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 3V |
