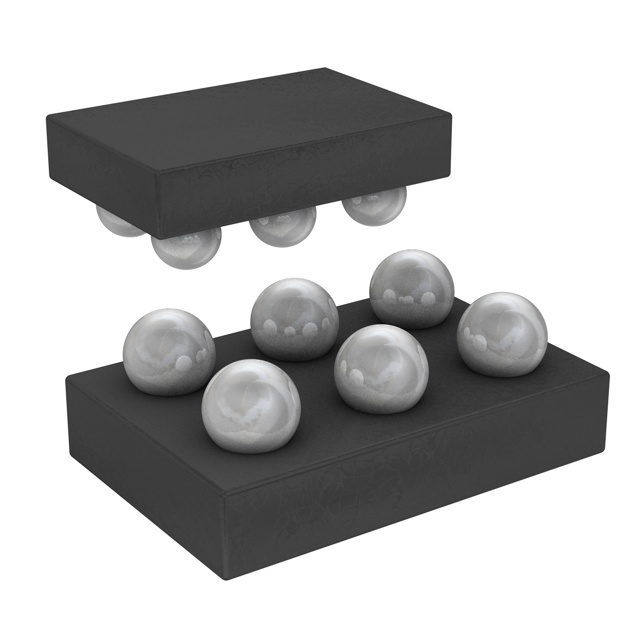

FAN53600AUC33X
IC REG BUCK 3.3V 600MA 6WLCSPManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi FAN53600AUC33X is a 600mA, fixed 3.3V output buck switching regulator. This high-frequency (3MHz) step-down converter features a synchronous rectifier for improved efficiency. Designed for surface mount applications, it is housed in a compact 6-WLCSP package. The device operates with an input voltage range of 2.3V to 5.5V and is suitable for operation from -40°C to 85°C. This onsemi regulator is commonly found in portable electronics and various power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 600mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 3MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-WLCSP (1.23x0.88) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 3.3V |
