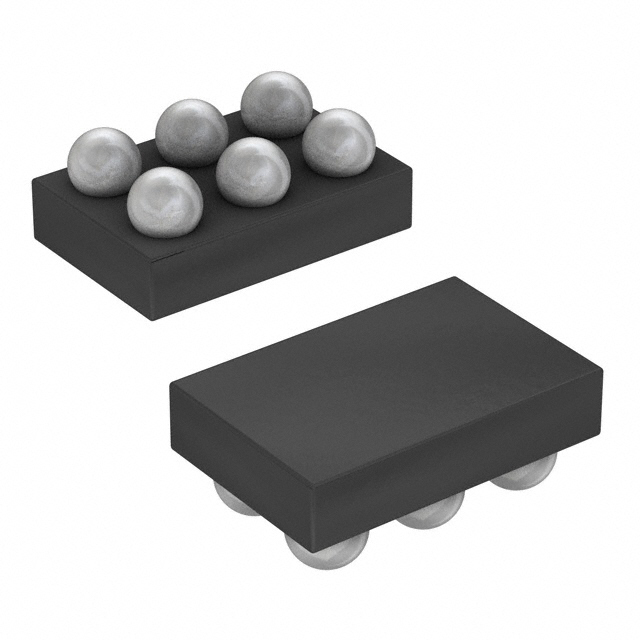

FAN4868UC33X
IC REG BOOST 3.3V 300MA 6WLCSPManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi TinyBoost® FAN4868UC33X is a highly efficient, fixed 3.3V boost switching regulator designed for portable applications. This device delivers a continuous 300mA output current from an input voltage range of 2.3V to 3.2V. Featuring a 3MHz switching frequency, the FAN4868UC33X minimizes external inductor and capacitor sizes, reducing overall solution footprint. Its synchronous rectification architecture enhances efficiency, making it suitable for battery-powered devices. Applications include portable electronics, medical devices, and industrial controls requiring a stable voltage boost. The FAN4868UC33X is supplied in a compact 6-WLCSP package for surface mounting, delivered on tape and reel.
Additional Information
Series: TinyBoost®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 3MHz |
| Voltage - Input (Max) | 3.2V |
| Topology | Boost |
| Supplier Device Package | 6-WLCSP (0.88x1.23) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 3.3V |
