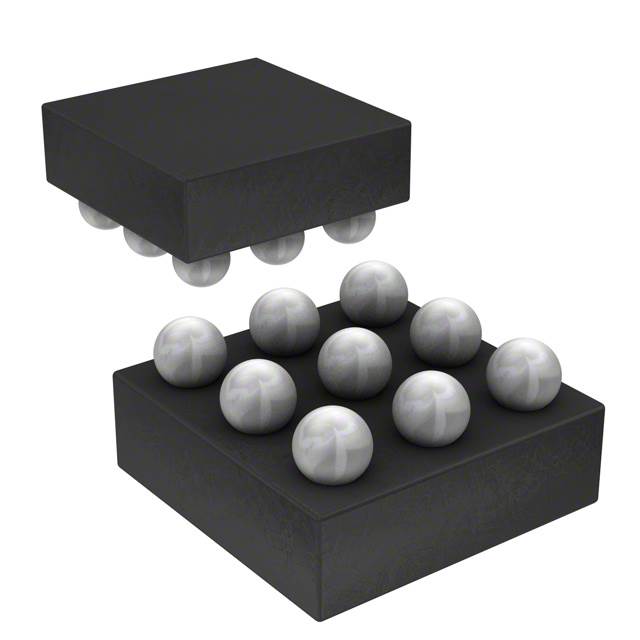

FAN48685UC08X
IC REG BOOST PROG 800MA 9WLCSPManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost Switching Regulator IC Positive Programmable 3.6V, 5V, 5.45V 1 Output 800mA 9-UFBGA, WLCSP
Additional Information
Series: TinyBoost®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-UFBGA, WLCSP |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 9-WLCSP (1.22x1.22) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 3.6V, 5V, 5.45V |
Request a Quote
Clients Also Buy
FAN48618BUC53X
IC REG BOOST 5.25V 1.2A 9WLCSP

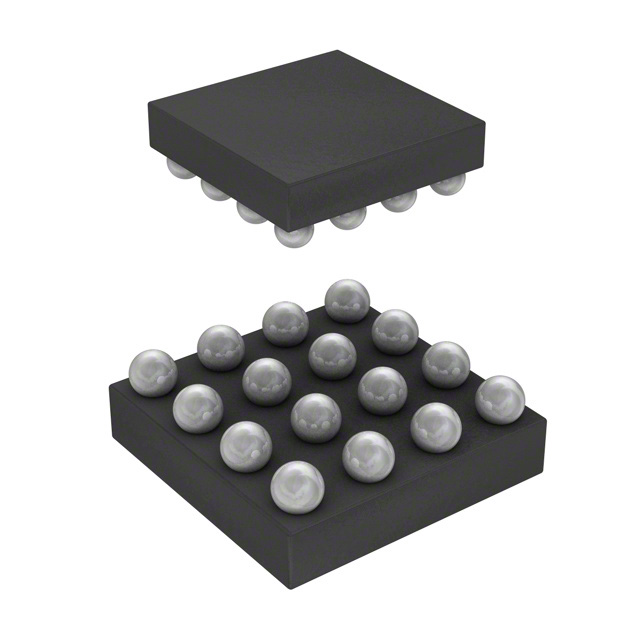

FAN48623UC35X
