FAN4860UMP5X
IC REG BOOST 5V 930MA 6UDFNManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
The onsemi FAN4860UMP5X is a TinyBoost® series step-up switching regulator. This positive fixed 5V output device provides 930mA of output current from a single output. Featuring a high switching frequency of 3MHz, it utilizes a synchronous boost topology for efficient power conversion. The input voltage range is 2.3V to 4.5V. The device is housed in a compact 6-UDFN (2x2) exposed pad package, suitable for surface mounting. Typical applications include portable electronics, mobile devices, and battery-powered systems where efficient voltage boosting is critical. The operating temperature range is -40°C to 85°C.
Additional Information
Series: TinyBoost®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

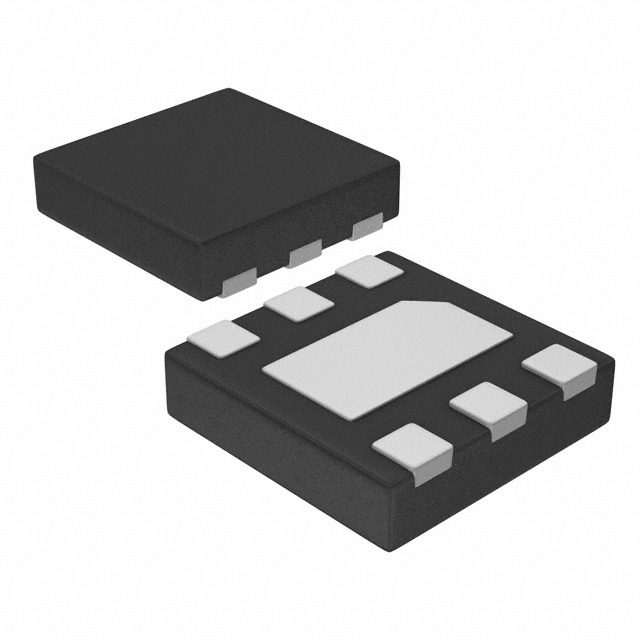

| Package / Case | 6-UDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 930mA (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 3MHz |
| Voltage - Input (Max) | 4.5V |
| Topology | Boost |
| Supplier Device Package | 6-UDFN (2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 5V |
