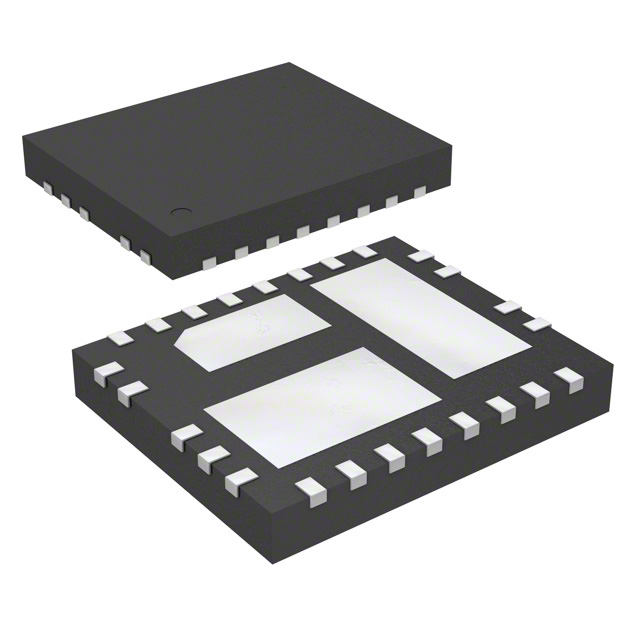

FAN2103MPX
IC REG BUCK ADJ 3A 25MLPManufacturer: onsemi
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 25-WQFN Exposed Pad
Additional Information
Series: TinyBuck®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 25-WQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 600kHz |
| Voltage - Input (Max) | 24V |
| Topology | Buck |
| Supplier Device Package | 25-MLP (6x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 21.6V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.8V |
